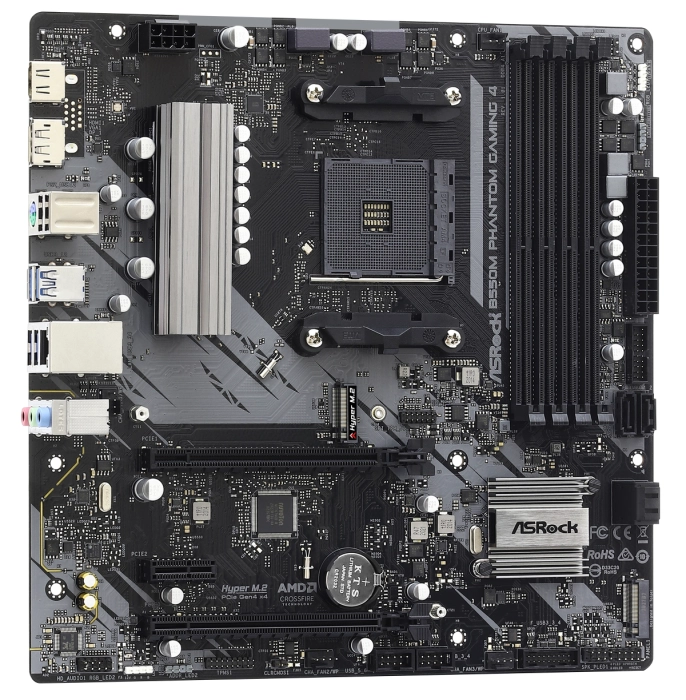

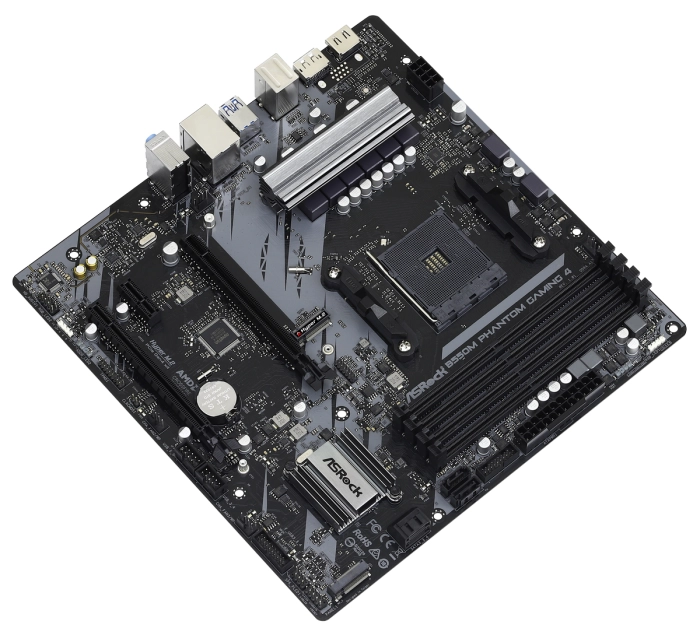

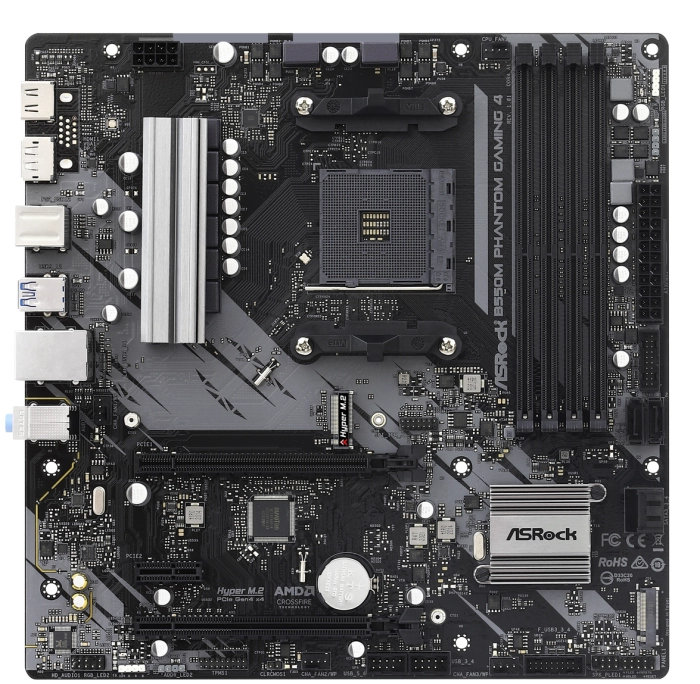

ASRock B550M PHANTOM GAMING 4
Supports AMD AM4 Socket Ryzen™ 3000, 3000 G-Series, 4000 G-Series, 5000 and 5000 G-Series Desktop Processors
ASRock B550M PHANTOM GAMING 4
Supports AMD AM4 Socket Ryzen™ 3000, 3000 G-Series, 4000 G-Series, 5000 and 5000 G-Series Desktop Processors
Лизингов калкулатор
| Характеристика | Стойност |
|---|---|
| Чипсет | AMD B550 |
| CPU Socket | AM4 |
| Форм фактор | Micro ATX |
| Слотове памет | 4 |
| Поддържана памет | DDR4 |
| Аудио | Realtek ALC887/897 |
| LAN | Realtek RTL8111H (10/100/1000 Mbit) |
| Поддържани процесори | AMD Ryzen™ 5000 & 3000 Series desktop processors (not compatible with AMD Ryzen™ 5 3400G & Ryzen™ 3 3200G) and AMD Ryzen™ 4000 G-Series processors |
| Максимален капацитет RAM памет | 128 GB |
| Честота памет | 4733+(OC) / 4666(OC) / 4600(OC) / 4533(OC) / 4466(OC) / 4400(OC) / 4333(OC) / 4266(OC) / 4200(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3200 / 2933 / 2667 / 2400 / 2133 |
| Поддръжка на Dual channel | Да |

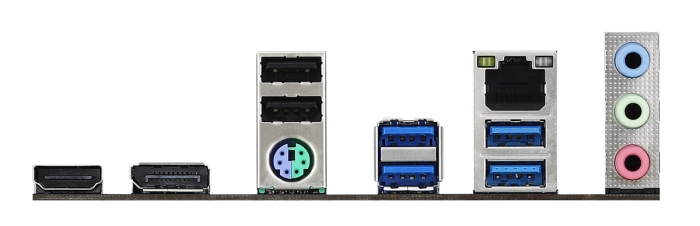

| Свързаност | 1 x PS/2 Mouse/Keyboard Port | 1 x HDMI Port | 1 x DisplayPort 1.4 | 1 x RJ-45 LAN Port | HD Audio Jacks: Line in / Front Speaker / Microphone |
| Видео слот | PCI Express |
| Слотoве PCI-E x16 | 2 x PCI Express x16 Slots (PCIE1: Gen4x16 mode; PCIE3: Gen3 x4 mode) |
| Слотoве PCI-E x1 | 1 |
| Други | 8 Power Phase design | Microsoft® Windows® 10 64-bit / 11 64-bit |
| SATA Интерфейс | 4 x SATA3 6.0 Gb/s |
| Комплектът включва | Quick Installation Guide, Support CD, I/O Shield - 2 x SATA Data Cables - 2 x Screws for M.2 Sockets |
| M2 слот |
1 x Hyper M.2 Socket (M2_1), supports M Key type 2280 M.2 PCI Express module up to Gen4x4 (64 Gb/s) 1 x M.2 Socket (M2_2), supports M Key type 2280 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x2 (16 Gb/s) |
| Размери (MB) | 24.4cm x 24.4cm |
| Поддръжка на RAID | 0,1,10 |
| USB портове |
4 x USB 3.2 Gen1 2 x USB 2.0 |
| Гаранция | 36 месеца |
| Арт. номера |
B550M PHANTOM GAMING 4
64688
90-MXBE90-A0UAYZ
ASR-MB-B550M-PHANTOM-4
|
B550M
Phantom Gaming 4
- Supports AMD AM4 Socket Ryzen™ 3000, 3000 G-Series, 4000 G-Series, 5000 and 5000 G-Series Desktop Processors*
- 8 Power Phase Design, Digi Power
- Supports DDR4 4733+ (OC)
- 1 x PCIe 4.0 x16, 1 x PCIe 3.0 x16, 1 x PCIe 3.0 x1
- Supports AMD CrossFireX™
- Graphics Output Options: HDMI, DisplayPort
- 7.1 CH HD Audio (Realtek ALC887/897 Audio Codec)

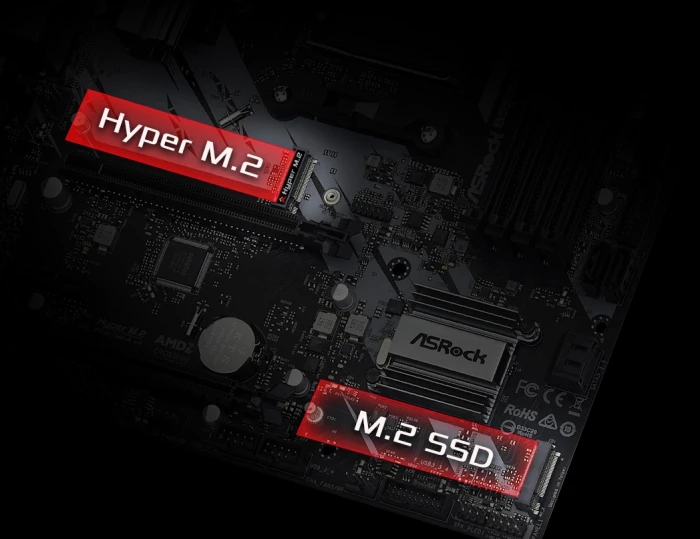

- 4 x SATA3, 1 x Hyper M.2(PCIe Gen4 x4), 1 x M.2(PCIe Gen3 x2 & SATA3)
- 8 x USB 3.2 Gen1 (4 Front, 4 Rear)
- 6 x USB 2.0 (4 Front, 2 Rear)
- Realtek Gigabit LAN
*Not compatible with AMD Athlon™ Processors.
