ASRock B550 Extreme4
Лизингов калкулатор
| Характеристика | Стойност |
|---|---|
| Чипсет | AMD B550 |
| CPU Socket | AM4 |
| Форм фактор | ATX |
| Слотове памет | 4 |
| Поддържана памет | DDR4 |
| Аудио | Realtek ALC1220 |
| LAN | 2.5 Gigabit Dragon RTL8125BG |
| Поддържани процесори | AMD Ryzen™ 5000 Series/ 5000 G-Series/ 4000 G-Series/ 3000 Series |
| Максимален капацитет RAM памет | 128 GB |
| Честота памет | up to 4733 MHz |
| Поддръжка на Dual channel | Да |
| Слотoве PCI-E x16 | 2 x PCI Express x16 Slots (PCIE1: Gen4x16 mode; PCIE3: Gen3 x4 mode) |
| Слотoве PCI-E x1 | 2 |
| SATA Интерфейс | 6 x SATA3 6.0 Gb/s |
| M2 слот | 2x M.2 slots |
| Размери (MB) | 30.5 cm x 24.4 cm |
| Поддръжка на RAID | 0,1,10 |

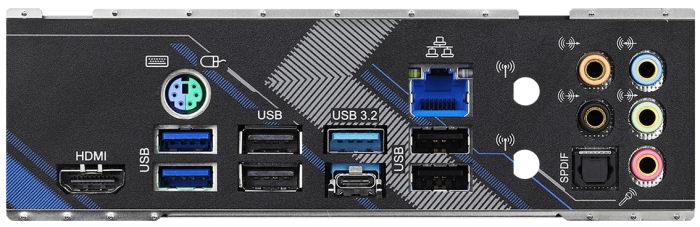

| Заден панел I/O |
1 x HDMI 1 x Optical SPDIF Out 1 x PS/2 Mouse/Keyboard Port 1 x RJ-45 LAN 1 x USB 3.2 Gen 2 1 x USB 3.2 Gen 2 Type-C 2 x Antenna Mounting Points 2 x USB 3.2 Gen 1 4 x USB 2.0 5 x audio jacks |
| Гаранция | 36 месеца |
| Арт. номера |
64685
|
B550 Extreme4

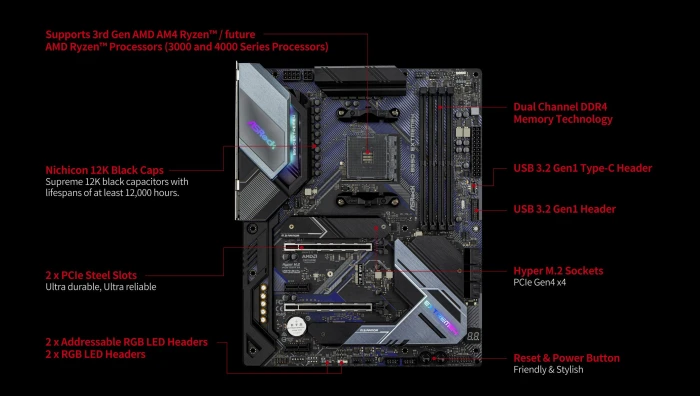

- Supports AMD AM4 Socket Ryzen™ 3000, 3000 G-Series, 4000 G-Series, 5000 and 5000 G-Series Desktop Processors*
- 14 Power Phase Design, Digi Power, Dr. MOS
- Supports DDR4 4733+ (OC)
- 1 PCIe 4.0 x16, 1 PCIe 3.0 x16, 2 PCIe 3.0 x1, 1 M.2 Key E for WiFi
- Graphics Output Options: HDMI
- AMD CrossFireX™

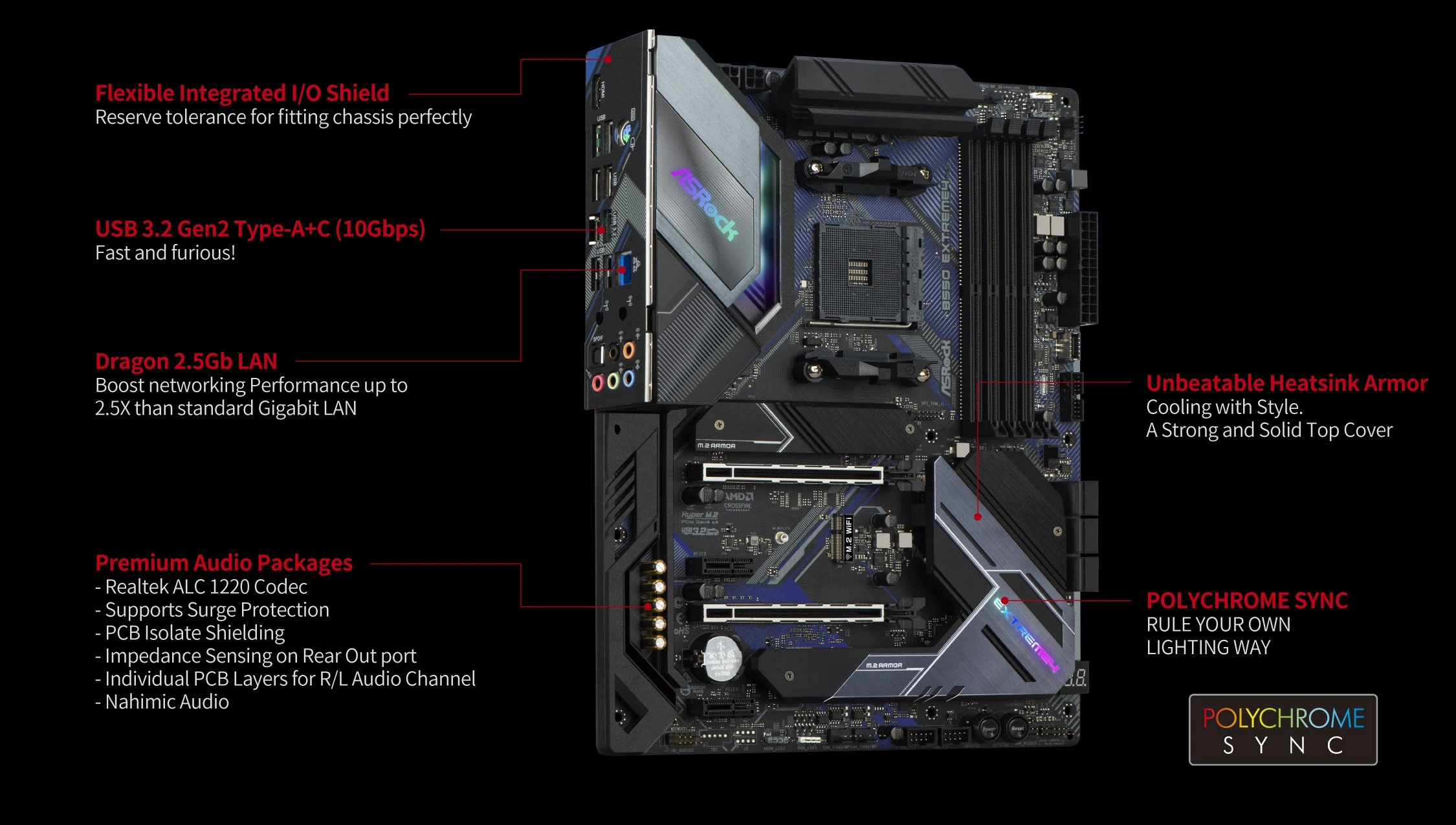

- 7.1 CH HD Audio (Realtek ALC1220 Audio Codec), Nahimic Audio
- 6 SATA3, 1 Hyper M.2 (PCIe Gen4 x4), 1 M.2 (PCIe Gen3 x2 & SATA3)
- 2 USB 3.2 Gen2 (Rear Type A+C), 5 USB 3.2 Gen1 (2 Front, 2 Rear, 1 Front Type-C)
- Dragon 2.5G LAN

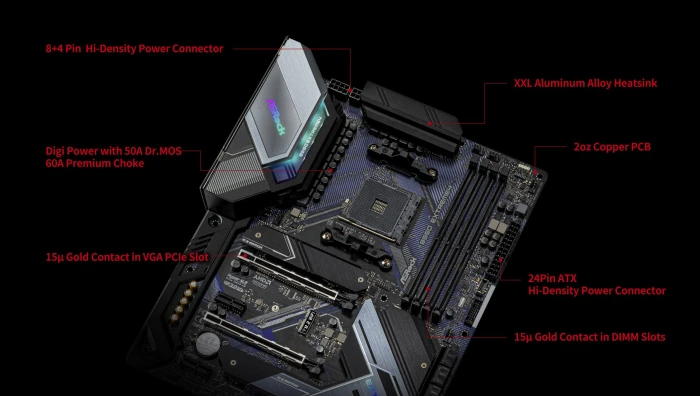

- Dr.MOS is the integrated power stage solution which is optimized for synchronous buck-set down voltage applications! Compared to traditional discrete MOSFETs, it intelligently delivers higher current for each phase, thus providing improved thermal result and superior performance.
- Compared to traditional chokes, ASRock’s premium 60A power chokes effectively make the saturation current up to three times better, thus providing enhanced and improved Vcore voltage to the motherboard.
