ASROCK B450M-HDV R4.0
Дънна платка ASROCK B450M-HDV R4.0
ASROCK B450M-HDV R4.0
Дънна платка ASROCK B450M-HDV R4.0
Лизингов калкулатор
| Характеристика | Стойност |
|---|---|
| CPU Socket | AM4 |
| Чипсет | AMD B450 |
| Форм фактор | Micro ATX |
| Слотове памет | 2 |
| Поддържана памет | DDR4 |
| Максимален капацитет RAM памет | 64 GB |
| Честота памет | |
| Аудио | Realtek ALC887/897 7.1 Surround HD |
| LAN | Realtek RTL8111H chip (10/100/1000 Mbit) |
| Поддържани процесори | AMD AM4 Socket Ryzen™ 2000, 3000, 4000 G-Series, 5000 and 5000 G-Series Desktop Processors |
| Графична карта | Integrated Graphics in the AMD Ryzen™ with Radeon™ Vega Graphics/ 7th Generation A-Series APU |
| USB 2.0 | 2 |

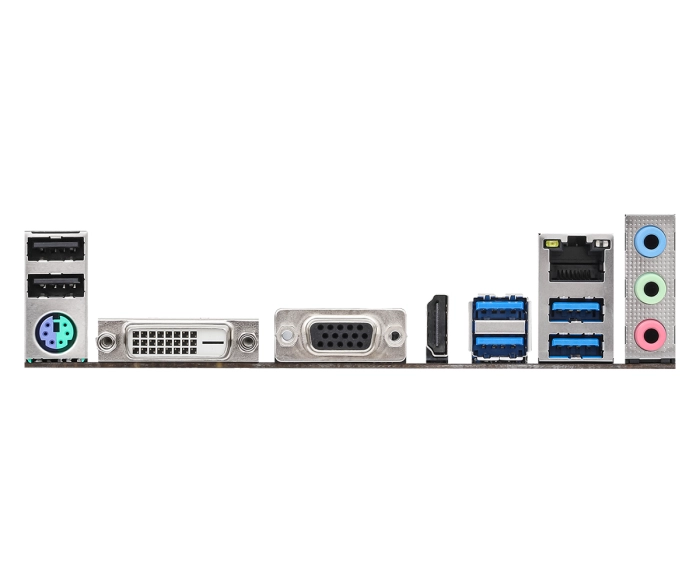

| Свързаност | 1 x PS/2 Mouse/Keyboard Port; 1 x D-Sub Port; 1 x DVI-D Port; 1 x HDMI Port; 2 x USB 2.0 Ports (Supports ESD Protection); 4 x USB 3.1 Gen1 Ports; 1 x RJ-45 LAN; HD Audio Jacks |
| Видео слот | PCI Express |
| Конектор захранване | 1 x 24-pin;1 x 8-pin |
| Слотoве PCI-E x16 | 1 |
| Слотoве PCI-E x1 | 1 |
| Други | 128Mb AMI UEFI Legal BIOS with multilingual GUI support;Supports "Plug and Play";ACPI 5.1 compliance wake up events;Supports jumperfree;SMBIOS 2.3 support;DRAM Voltage multi-adjustment |
| M2 слот | 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 PCIe x4/x2 SSD support) (M2P) |
| SATA Интерфейс | 4 x SATA3 6.0 Gb/s |
| Поддръжка на RAID | 0,1,10 |
| Гаранция | 36 месеца |
| Арт. номера |
B450M-HDV_R4.0
63011
ASR-MB-B450M-HDV-R4.0
|
B450M-HDV R4.0
- Supports AMD AM4 Socket Ryzen™ 2000, 3000, 4000 G-Series, 5000 and 5000 G-Series Desktop Processors
- 2 DIMMs, Supports DDR4 3200+(OC)*
- 1 PCIe 3.0 x16, 1 PCIe 2.0 x1
- Graphics Output : HDMI, DVI-D, D-Sub
- 7.1 CH HD Audio (Realtek ALC887/897 Audio Codec)
- 4 SATA3, 1 Ultra M.2 (PCIe Gen3 x4 & SATA3)*
- 6 USB 3.1 Gen1 (2 Front, 4 Rear)
- Realtek Gigabit LAN
