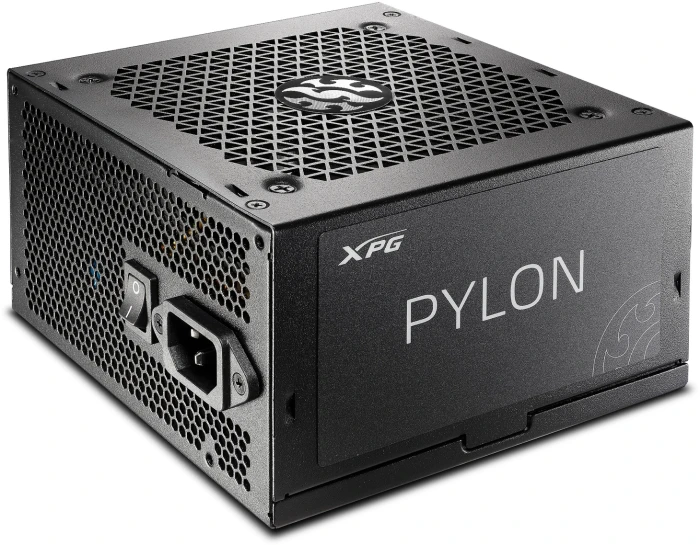

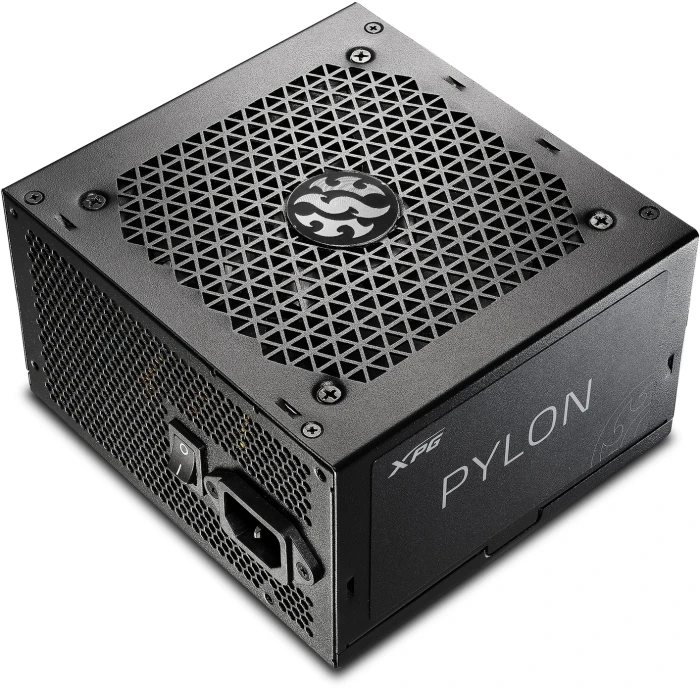

ADATA XPG PYLON Bronze 550W
PYLON550B-BKCEU
ADATA XPG PYLON Bronze 550W
PYLON550B-BKCEU
Лизингов калкулатор

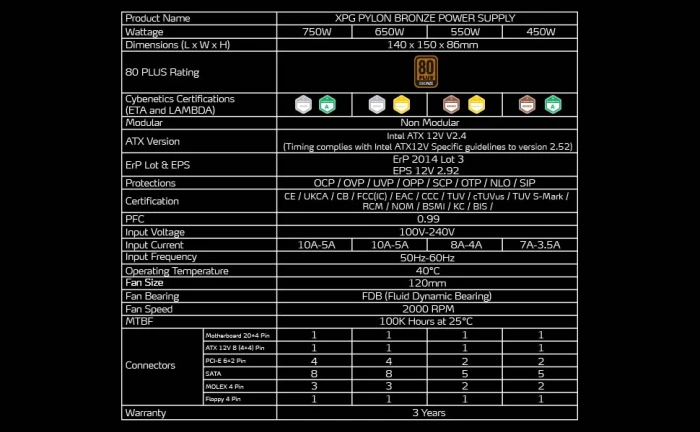

| Характеристика | Стойност |
|---|---|
| Мощност | 550 W |
| Сертификат | 80 Plus BRONZE |
| Тип окабеляване | Фиксирано |
| Формат | ATX |
| Размери (mm) | 140 x 150 x 86 mm |
| Захранване |
100 V - 240 V 50~60 Hz |
| Специални характеристики |
Active PFC DC-DC |
| Вентилатор (PSU) |

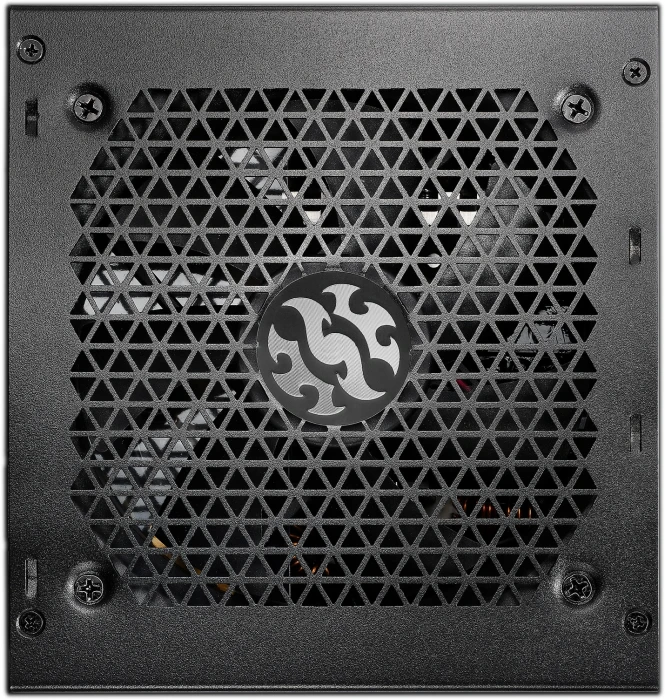

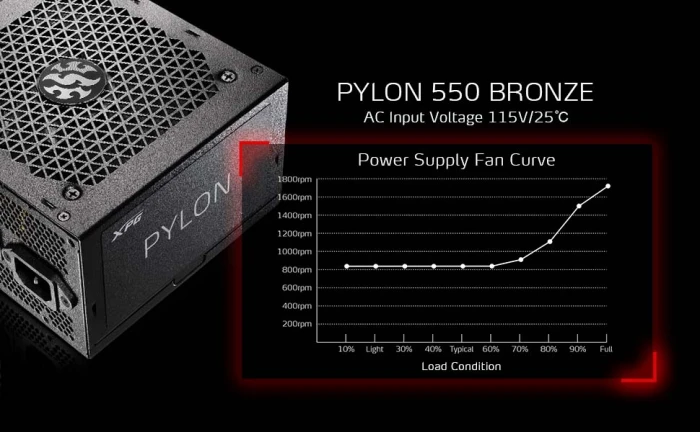

120 mm вентилатор Fluid Dynamic Bearing |
| Тегло (PSU) | 1.77 kg |
| Конектори (PSU) |

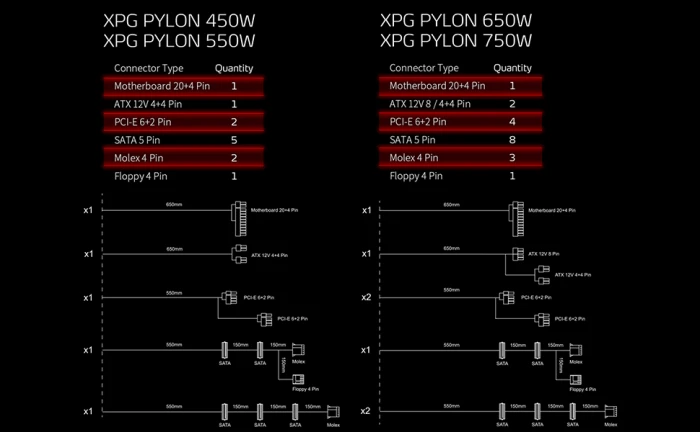

ATX 24-pin x 1 CPU 4+4-pin x 1 PCI-e 6+2-pin x 2 SATA x 5 MOLEX x 2 |
| Защити |
OVP (Over Voltage Protection) OCP (Over Current Protection) UVP (Under Voltage Protection) OPP (Over Power Protection) OTP (Over Temperature Protection) SCP (Short Circuit Protection) NLO (No Load Operation) SIP (Surge and Inrush Protection) |

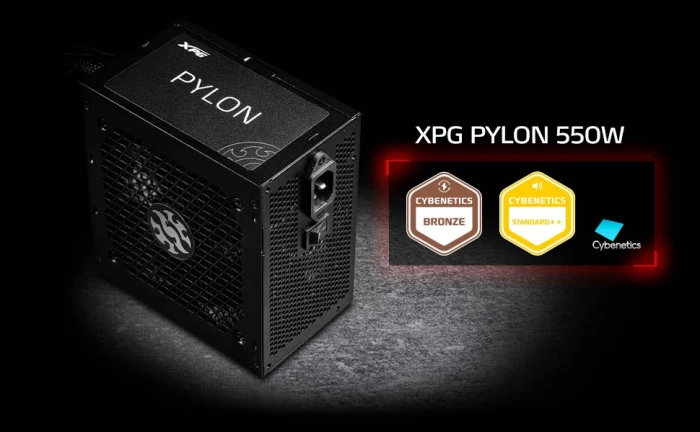

| Cybenetics certification |
Efficiency: Bronze Noise: Standard++ |
| Други (PSU) | Manufacturer (OEM): CWT (Channel Well Technology) |
| Гаранция | 36 месеца |
| Арт. номера |
65863
|
PYLON - RAW ENERGY
XPG PYLON offers more than just a Bronze-certified Power Supply. Highly efficient DC-to-DC converters and continuous power in 4 different wattage options are making it an ideal PSU pick for all usages.

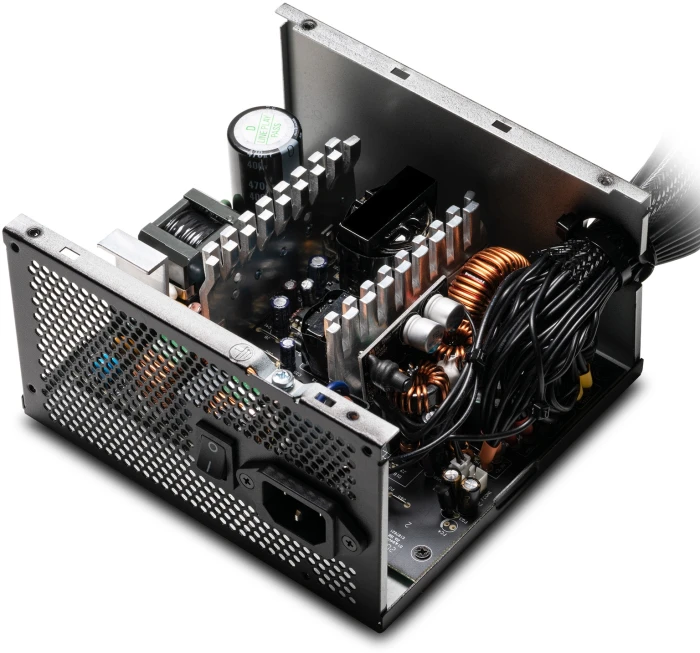

DC-to-DC Circuit in BRONZE Grade
XPG PYLON complies with Intel ATX Power Supply Design Guide‘s sleep mode function, featuring DC-to-DC 100% +12V Full Power(*) in all PYLON series, ensuring that power delivery remains consistent, power-efficient, and capable of supporting mid to high-end graphic cards and CPUs.
(*) DC-to-DC Circuit minimizes ripple noise, avoids unbalanced power load, and acts as a protective safeguard to PC components’ life expectancy.
